We are not like the other manufactures, we are different!

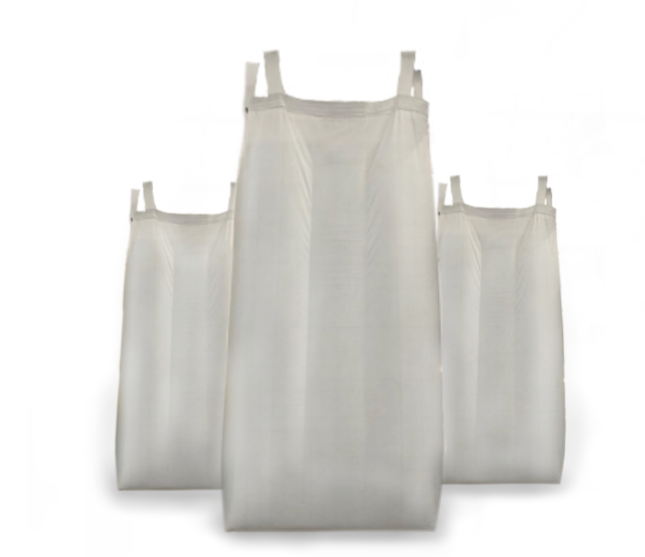

Proseal bigbags are mono-material 100% recyclable, leakage proof, automated, tested, and patented. More than 19 countries approved including US.
Contact usNew level of manufacturing automation
Human related mistakes (unsewn areas, missing accessories, wrong dimensions etc.) are eliminated through the new automated manufacturing process.
Mono-material 100% recyclable
Body and barrier materials are from the same family (PE) and liner (PE) anymore.
leakage proof & superior handling
Leakage issue caused by sewing is eliminated through the patented design.
Tested & patented
The patented design of ProSeal FIBC offers a fully recyclable structure focusing on sustainability for a better future.
Features
Delivering Sustainable Quality with Innovative Design and Manufacturing Technics while Eliminating Human-related Mistakes Through Hygienic Automation.
Automated manufacturing
- By using machinery and minimizing human contact, the Innovative automation creates hygienic manufacturing conditions.
- Thanks to machine automation, higher productivity can be reached at a lower production space and lower headcount.
- Human related mistakes (unsewn areas, missing , wrong dimensions etc.) are eliminated through the new automated manufacturing process.
Leakage proof & superior handling
- Contamination issue (operator related, cut pieces of sewing thread etc.) caused by sewing process is eliminated with the new sealing technology.
- MOSH/MOAH issues are eliminated with the new design.
- Liner insertion problems (turning, wrong positioning, blocking etc.) are solved with the new design.
Mono-material 100% recyclable
- NO PET dust proof material is needed by the new design.
- NO Glue for liner insertion is needed for the new design.
- NO Material difference for body (PP) and liner (PE) anymore.
- Body and Barrier materials are from the same family (PE) and can be safely recycled.
Tested & patented
- Top lift test: +6500 kg.
- Stacking test: +7000 kg.
- Field travel test.
- Fill & discharge test with customers.
- Leakage test with customers.
- Pressured blowing test: over 20 mbars.
- Manufactured repeating commercial orders.
Frequently Asked Questions
-
Possible bottom-sizes?
> 910 x 910 mm
> 910 x 1060 mm
> 1060 x 1060 mm
> 710 x 1060 mm
-
Min & Max height of body?
From 600 to 2000 mm.
-
What are the formstable types?
CP1, CP3, Euro.
-
What are the possible types?
Type A, Type B, Type C, Type D.
-
Spout-Dimensions (Ø and length) ?
Dia: 250-300-350-400-450-500-550 mm.
-
What is the max. SWL/SF?
1250 Kg 5:1 (SWL/SF).
